CPU Cores vs Threads a Brief Explanation

Cores vs Threads – CPU cores and threads are two essential components of processors that can significantly impact its overall performance.

A CPU core is a physical unit that can execute instructions independently. A thread, on the other hand, is a logical software unit that can run on a single core. While more cores usually translates to better performance, the number of threads is also important for tasks that can be divided into smaller parallel processes.

This article will discuss the differences between CPU cores and threads and how they can affect computing performance based on your specific workload needs.

What Is a CPU?

A CPU (central processing unit) is essentially the brain that processes and carries out instructions. CPUs come in many different varieties, such as single-core, dual-core, quad-core, and multi-core processors. The more cores a processor has, the faster it can carry out tasks. This is often comparable to how a GPU works.

In addition to executing instructions from programs, the CPU also manages other components of the system like RAM (random access memory), HDD (hard disk drive), or SSD (solid-state drive). The CPU is responsible for coordinating and communicating with the other components. It’s important to choose the right CPU, depending on what types of tasks you plan to do.

Your CPU is likely to be different if you’re running applications and workflows vs storing archives and legacy files. CPUs vary widely in performance, power consumption, and cost. The activities the CPU performs will materially impact the right choice for your business needs and budget.

Understanding CPU Cores

The number of cores in a system will determine how many programs and tasks it can execute at once. For instance, a single-core processor may be able to handle one task at a time. By contrast, a quad-core processor could handle up to four simultaneous tasks. As the number of cores increases, so do processing speed and throughput.

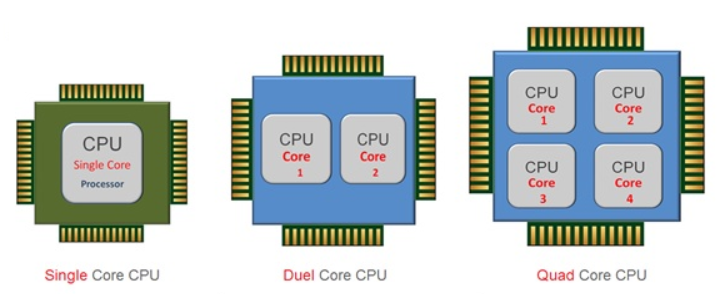

Single-Core CPU

Single-core CPUs are cheaper than multi-core CPUs, and they consume less power. This makes them great options for laptops, tablets, and other mobile devices. They also work well if the tasks you need to complete are relatively simple or don’t require too much multitasking. On the other hand, they will lack the performance of a multi-core CPU.

Multi-Core CPU

A multi-core CPU is ideal for multitasking and running applications that require high levels of performance or processing large datasets. This type of processor can divide tasks among the cores, allowing each to handle its own piece. A multi-core CPU will require more energy and supporting hardware to support its power.

Advantages Of Multi-Core Processor

• A multi-core processor can complete more tasks and perform better than a single-core processor with the same speed.
• It can process more information than a single-core processor while consuming less energy.
• It is ideal for multi-threading applications.
• It can run multiple simultaneous processes easily.
• It enhances the performance while you multitask or use demanding applications.
• The communication time with cache and RAM is less as multiple cores are present on the same chip. Data access is faster.
• The printed circuit board (PCB) needs less space when a multicore processor is used.

What Is A Thread?

A thread is a virtual component that handles the tasks of a CPU core, to complete them in an effective manner. It is a unit of execution on simultaneous programming.

In software, a thread is a single chain of instructions or code, that can execute independently of, and concurrently with, other sections of code. A thread has its own program counter, stack, and set of registers.

When referring to threads in the context of processor cores, what is usually intended is how threads are handled by a CPUs Simultaneous Multi-Threading (SMT) feature.

What Is Single-Threading And Multithreading?

Single threading means the execution of instructions in one sequence, that is, a single command is processed at a time. Multithreading is the ability of the CPU to divide up the work among multiple threads instead of giving it to a single core, to enable concurrent processing. The multiple threads are processed by the different CPU cores in parallel, to speed up performance and save time.

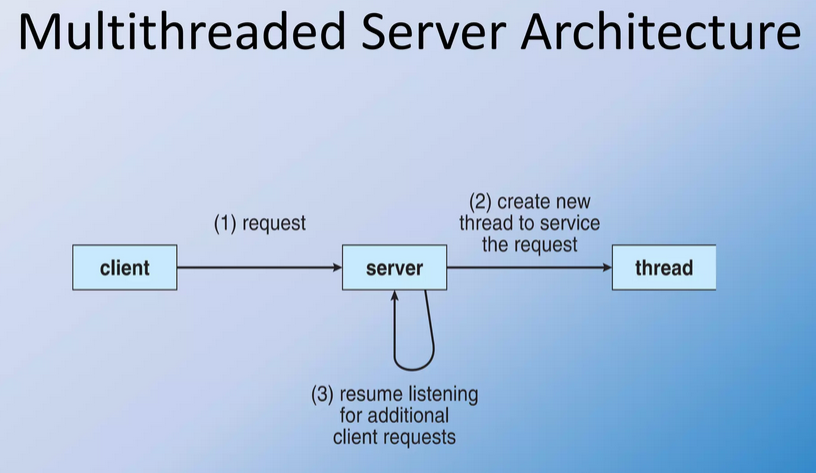

How Does Multithreading Work?

Multithreading allows a process to have two or more instruction threads share the same resources but execute independently. That means a single process can have multiple concurrent tasks performing within it with multiple threads running in parallel. This enhances responsiveness, throughput and speed of the process.

What is Hyperthreading?

Hyperthreading further increases the performance of multi-core processors by allowing them to execute two threads concurrently. The process works by sharing the resources of each core between two threads. That way, both can be active at the same time while accessing the same cache memory, registers, and execution units.

This allows the processor to take advantage of unused resources and improve performance. Hyperthreading can also result in higher power consumption than regular multithreading, as it requires more active cores to maintain operation.

The compounding effect of hyperthreading means that today’s CPUs can process an incredible number of tasks simultaneously.

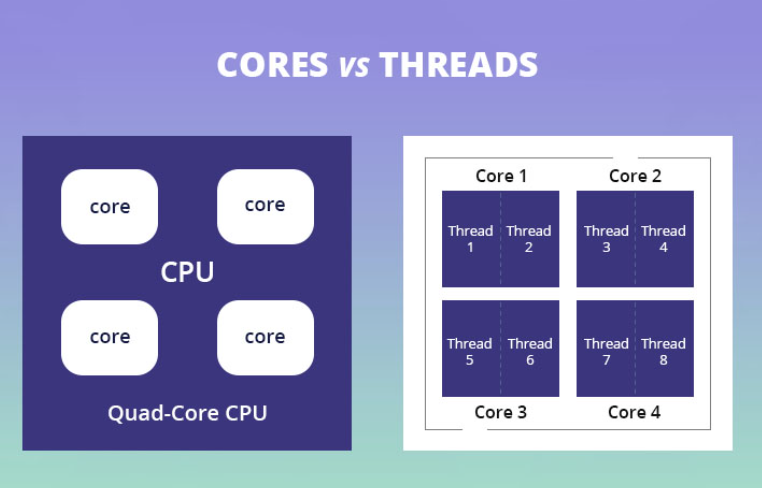

Differences Between Cores And Threads (Cores vs Threads)

• Core is a physical hardware component whereas thread is the virtual component that manages the tasks of the core.
• Cores enable completion of more work at a time, while threads enhance computational speed and throughput.
• Cores use content switching but threads use multiple processors for executing different processes.
• Cores require only a single unit of processing; threads require multiple processing units for task execution.
• Cores consume more power with an increase in load whereas threads can coordinate with the OS and kernels for an effective running of multiple concurrent processes.
• core is an individual physical processing unit, while threads are virtual sequences of instructions.
• The performance of a computer depends on the number of cores AND the threading technique. For example, a computer with a quad-core CPU will benefit from multithreading as it utilizes several cores. Meanwhile, a hyperthreading technique can further increase the number of threads that can be active by splitting a single core into two virtual cores, allowing them to run multiple threads.
• The trade-off to such strength is that it often comes with a cost, consumes more power, and may only sometimes result in an overall improvement in performance. It’s critical to have comprehensive knowledge not only about the technical specifications of the CPUs you’re considering but also about how your organization will be using them.

Key Differences between CPU Core and Threads:

A core is a single physical processing unit, whereas a thread is a virtual sequence of instructions. This is the primary distinction between cores and threads.

Both the number of cores and the threading method affect a computer’s performance. Multithreading, for instance, will help a computer with a quad-core CPU since it makes use of several cores. A single core can be divided into two virtual cores. using the hyperthreading approach which increases the number of threads. That can be active by enabling each core to operate many threads.

Performance:

1. Cores are independent, fully functional processing units that can handle multiple tasks at once.
2. The smallest unit of execution, a thread is equivalent to a subset of a core’s processing power.

Sharing of Resources:

1. Cores don’t directly exchange resources with one another; instead, they function separately.
2. A core’s capacity to manage the shared resources across its threads affects the core’s overall performance.

Conclusion

A processor’s speed is dependent on its CPU cores and threads, which provide separate processing units. For simultaneous execution and a finer level of parallelism inside each core. The best configuration is determined by the activities the user plans to do. Certain programs gain more from having more cores. While others benefit more from more thread-level parallelism.

Two essential parts of any contemporary computer system are threads and cores. You may maximize the performance of your machine by being aware of their roles. This aids in your decision-making about the most effective use. Use of resources to achieve optimal performance. For instance, understanding the distinction between threads and cores might be useful. Useful when choosing how to maximize or enhance the processing capability of your server.
